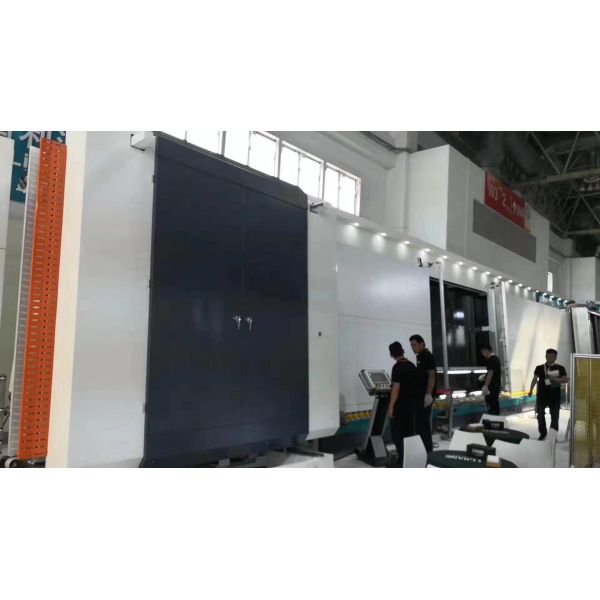

Vertical Insulating Glass Production Line Insulated Glass Gas Filling Production Ig Line

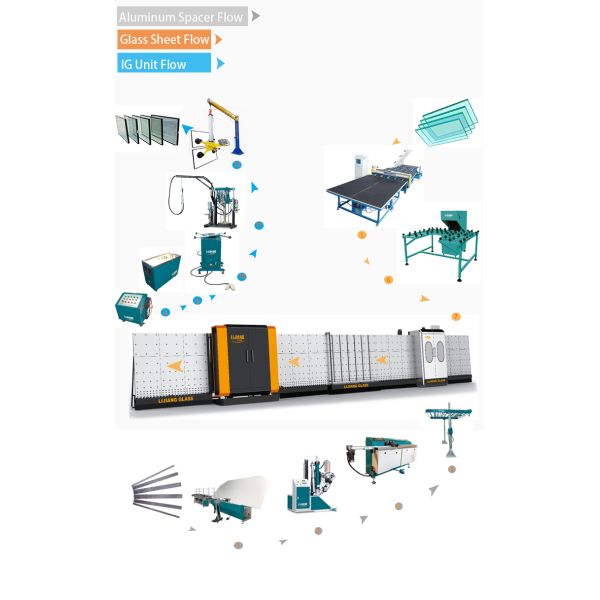

The Insulatiing screen completes the following tasks: Clean glass The placement of the aluminum frame; Regular double glass Three common ones; Double-tap the glass glass and the second glass.
insulatiing glass machines are low footprint; High performance; It is a special device in glass manufacturing with a strong aluminum shield that provides the benefits of reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, easy and intelligent operation;
2. The world's largest component of the brand is a sustainable, long-lasting product that provides a seamless, durable experience.
3, designed for high-quality glass conversions such as reflective glass, low E glass, tempered glass and laminated glass;
4, large mirror changes and scales, various models and customizations available;
5, large output capacity, 1000pcs output per day;
6 Double layer; Three layers; Accelerated glass and glass that protects against irregular shapes.
7, refill gas automatically when installing glassware;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD |
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size | 2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
